NRGIsoQuarterDomTimeSeries640x480

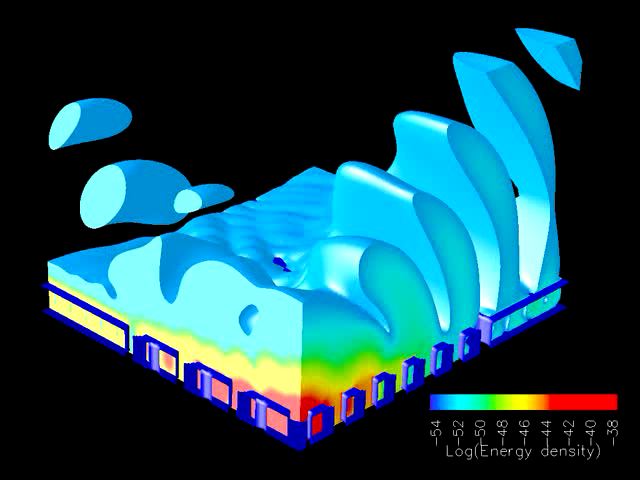

This movie shows the radiation pattern above a slab PBG nano cavity The time evolution of the energy density above the slab is shown. Also visable is energy propagation inside the slab. The light-matter interaction inside the microcavity has been computed self-consistently and the far field components of the transmitted and/or reflected fields as well as the corresponding spectra have to be evaluated. Specifically, we investigate a microcavity structure with a single defect into which we place a two-level atom being in resonance with the predominant cavity mode. This model is able to represent various physical implementations of two-level systems embedded in a photonic crystal at least to first order, hence the results are applicable to different experimental situations (nanocrystals, atoms, molecules).
|
Movie specs: 2.1MB MPEG1 640x480 30.000 fps 125.0 kbyte/s |
